Pure water industry or power plant

In pure water industry or power plant, we suggest that you can choose the following sensors:

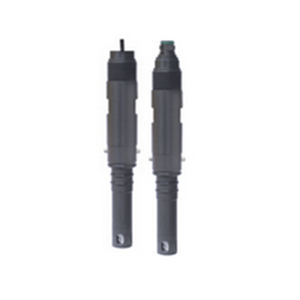

pH sensor

· Direct use with various pH meters as a complete set.

· Installation with 3/4NPT pipe thread, convenient to installation.

· The sensor has the fixed cable and the length of the cable can be adjusted according to the

   requirements of the users.

· pH range:0-14; zero point: E₀=7pH; Temperature rang: 0-110℃.

· pressure range：0.6MPa.

· The external dimension of the sensor isΦ26×165.

· The outer tube material:PPS plastic.

                                                    Selection of model:

                                                    · PC2221 two in one combination sensor

                                                    · ASPS2221 three in one combination sensor,please note the value of the thermistor

                                                                         when order:Pt100、Pt1000、2.252K、10K、22K etc.

ORP sensor

· It can be directly used together with various redox meters as a complete set.

· Installation with 3/4NPT pipe thread,convenient to installation.

· The sensor has the fixed cable.

· The length of the cable can be adjusted according to the requirements of the users.

· Measuring range:±2000mv.

· Temperature rang: -10-110℃.

· pressure range：0.6MPa.

· The external dimension of the sensor:Φ26×165.

                                                 · The outer tube material:PPS plastic.

                                                 Selection of model:

                                                  · ASRS2801 combination ORP sensor (Pt ring)

                                                  · ASRS2501 combination ORP sensor (Pt pin)

Conductivity sensor

· It can be directly used together with various conductivity meters as a compatible set.

· The sensor  has the fixed cable.

· The length of the cable can be adjusted according to the requirements of the user.

· Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.

· Mounting screw cap material: stainless steel.

· Please note the value of the thermistor when order: Pt100, Pt1000，2.252K，10K，22K etc.

                                       Pattern selection and technical performance

Model	ASDS-0.01	ASDS-0.1		ASDS1	ASDS-10
Measurement Range ( μs/cm)	0-20	0-200		0-2000	0-20000
Temperature Range ( ℃)	0-130
Pressure ( MPa)	1.0
Constant	0.01		0.1	1	10
Outer Tube Material	stainless steel
External Dimension(mm)	Φ13×70 or other size
Cable Length	Adjusted according to the requirements of the users
