| pH sensor for pure water | pH sensor for waste water | pH sensor for common process | pharmacy and fermentation industry | Digital pH sensor |
|
Technical feature: |
|
|
· |
Adoption of the most advanced large Teflon diaphragm ,which makes the sensor with stable liquid juntion. |
|
· |
Strong anti-interference ability,it is not easy to be polluted and blocked,so it has a long life. |
|
· |
The reference system is filled with the high polymer; convenient use; it is unnecessary to refilling electrolyte. |
|
· |
Sensitive response of the sensor ,the 95% measured value can be reached up in several seconds. |
|
· |
pH range: 0～14pH the temperature range:0～110℃. |
|
· |
Pressure resistance of the sensor:0.6MPa and the zero point E0=7pH . |
|
· |
The external dimension of the sensor is φ12x120, 225,360mm or other dimensions. |
|
|
The common industrial process includes the following fields : 1. Chemical industry 2. Petrochemical industry 3. Sugar industry 4. Swimming pool water, sea water , underground water 5. High temperature and strong acid occasion ,high temperature and strong base occasion 6. Other industry |

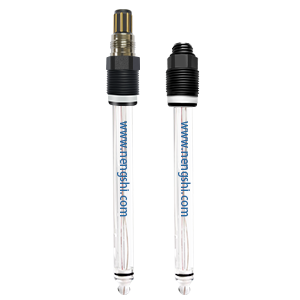

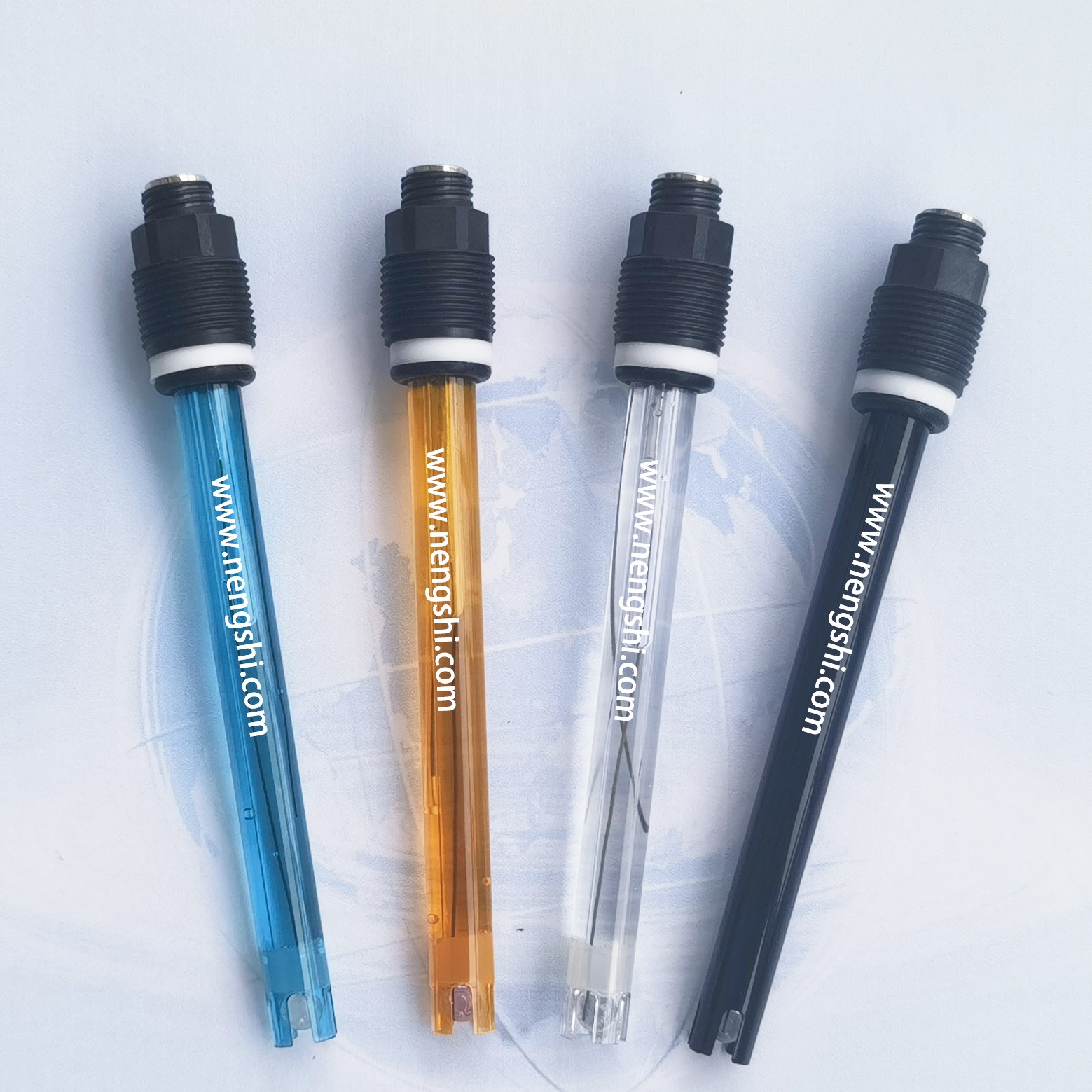

· Direct use with various pH meters as a complete set.
· Plug-in connection, convenient to installation and replacement.
· pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-110℃.
· Pressure range：0.6MPa.

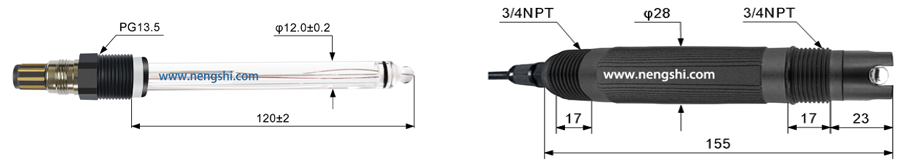

· The external dimension of the sensor isΦ12×120,225mm or other size.
· It can be installed with the thread PG13.5.
· The outer tube material : glass.
· The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
Selection of model:
· ASP2121 combination sensor
ASP3151 combination sensor with thermistor
(Please note the value of the thermistor when order)
· It can be installed with the thread PG13.5.
· pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-110℃.
· Pressure range：0.6MPa.
· The external dimension of the sensor isΦ12×120,225mm or other size.
· The outer tube material : glass.
· The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
Selection of model:
· ASP2111 combination sensor
· ASP3111 combination sensor with thermistor
(Please note the value of the thermistor when order)

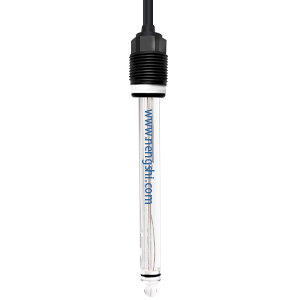

· The sensor has the fixed cable and the length of the cable can be adjusted according
to the requirements of the users.
· pH range:0-14;Zero point: E0=7pH; Temperature rang: 0-110℃.
· Pressure range：0.6MPa.
· The external dimension of the sensor isΦ12×120,225mm or other size.
· The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
· ASP3101 combinatin sensor with thermistor
(Please note the value of the thermistor when order)

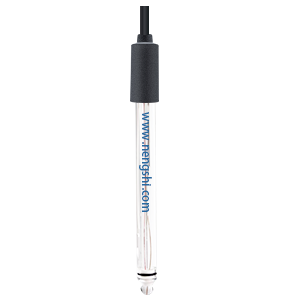

· The sensor has the fixed cable and the length of the cable can be adjusted according
to the requirements of the users.
· pH range:0-14;Zero point: E0=7pH; Temperature rang: 0-110℃.
· Pressure range：0.6MPa.
· The external dimension of the sensor isΦ26×165mm.
· ASPS2121 combination sensor with thermistor
(Please note the value of the thermistor when order)
· ASPRT2121 pH,ORP, temperature three in one combination sensor
(Please note the value of the thermistor when order)
· ASPCT2121 pH,conductivity ,temperature three in one combination sensor
(Please note the value of the thermistor when order)
· ASPRCT2121 pH,ORP,conductivity ,temperature four in one combination sensor
(Please note the value of the thermistor when order)

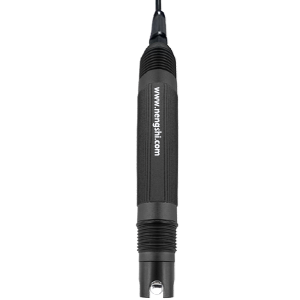

· Direct use with various pH meters as a complete set.
· Installation with 3/4NPT pipe thread,with safe and reliable sealing.
· The sensor has the fixed cable and the length of the cable can be adjusted according
to the requirements of the users.
· pH range:0-14; Zero point: E0=7pH; Temperature rang : 0-110℃.
· Pressure range：0.6MPa.
· The external dimension of the sensor isΦ26×150mm.
· The outer tube material : PPS plastic.
· Sensitive meterial : plane sensitive glass membrane, not easily broken.
· The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
Selection of model:
· ASPS2801 combination sensor
· ASPS3801 combination sensor with thermistor
(Please note the value of the thermistor when order)

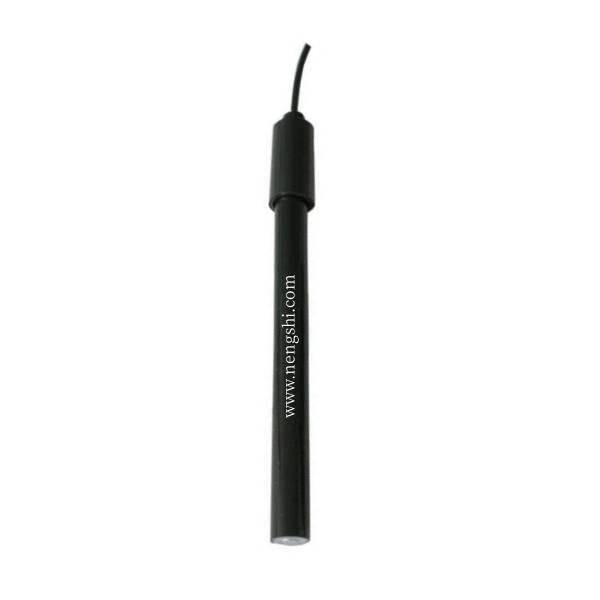

· It is unnecessary to refilling KCL solution.
· pH range: 0-14.
· Temperature rang: 0-80℃.
· The external dimension of the sensor is φ12x120mm.
· The
outer tube material : plastic (blue, black, white or other colour optional).
· The sensor with the thermistor: Pt100,Pt1000,2k,10k,22k etc.
Selection of model:
· ASPDJ200 combination sensor ( colour optional)
· ASP300 combination sensor with thermistor
(Please note the value of the thermistor and colour when order)
· It is unnecessary to refilling KCL solution.
· The sensor has the fixed cable and the length of the cable can be adjusted
according to the requirements of the users.
· It can be installed with the thread PG13.5.
· pH range: 0-14.
· Temperature range: 0-80℃.
· The external dimension of the sensor : φ12x120 mm.
· The outer tube material : plastic (blue, black, white or other colour optional).
Selection of model:
· ASPDJ201 combination sensor (colour optional)
· ASPDJ301 combination sensor with thermistor
(Please note the value of the thermistor and colour when order)
· It is unnecessary to refilling KCL solution.
· Plug-in
connection,convenient to installation and replacement .
· S8
screw cap or VP connector, PG13.5 thread.
· pH range: 0-14.
· Temperature rang: 0-80℃.
· The external dimension of the sensor is φ12x120mm.
· The outer tube material : plastic (blue, black, white
or other colour).
· The sensor with the thermistor: Pt100,Pt1000,2k,10k,22k etc.
Selection of model:
· ASPDJ202 combination sensor (colour optional)
· ASPDJ305 combination sensor with thermistor
(Please note the value of the thermistor and colour when order)
· It is unnecessary to refilling KCL solution.
· Plug-in
connection,convenient to installation and replacement .
· S7 screw
cap.
· pH range: 0-14.
· Temperature rang: 0-80℃.
· The external dimension of the sensor is φ12x120mm.
· The outer tube material : plastic (blue, black, white
or other colour).
Selection of model:
· ASPDJ208 combination sensor (colour optional)
· pH
range: 0-14.
· Temperature
rang: 0-80℃.
· The
external dimension of the sensor : φ12x120mm.
· The
outer tube material : plastic.
· Sensitive
material : Plane sensitive glass membrane, not easily broken.
Selection of model:
· ASPP280 combination sensor

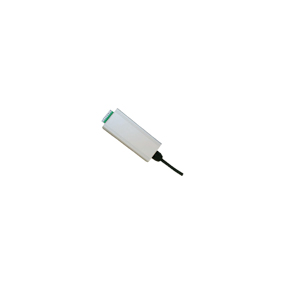

· It can directly connect with analog pH
sensor .
· It can convert analog signals to
digital signals.
Selcction of model:
· PT3000 pH digital module with RS485 output
