| pH sensor for pure water | pH sensor for waste water | pH sensor for common process | pharmacy and fermentation industry | Digital pH sensor |
|
Technical feature: |
|
|
· |
The measurement range：0～14 pH , zero point E0=7pH and the pressure resistance：0.6MPa. |
|
· |
The temperature range：0~130℃,suitable for steam sterilizable. |
|
· |
Good stability and small drift of sensor. |
|
· |
Quick response of sensor. |
|
· |
The sensor is in accordance with the requirements on sanitation of foods. |
|
· |
The dimension of the sensor is φ 12x120, 150 and 225mm or other dimensions. |

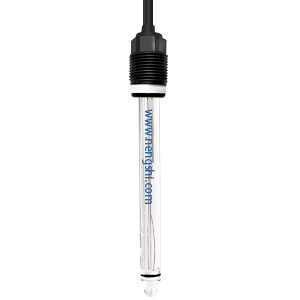

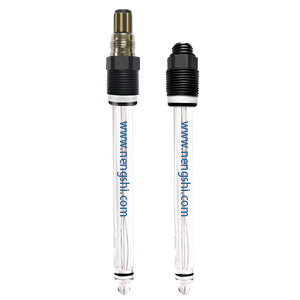

· pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-130℃.
· Pressure range：0.6MPa.
·The external dimension of the sensor isΦ12×120,225 or other size.
· The outer tube material : glass.
· The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
· ASP3351 combination sensor with thermistor
(Please note the value of the thermistor when order)
· The electrode has the fixed cable and the length of the cable can be adjusted according
to the requirements of the users.

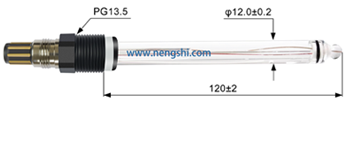

· It can be installed with the thread PG13.5 .

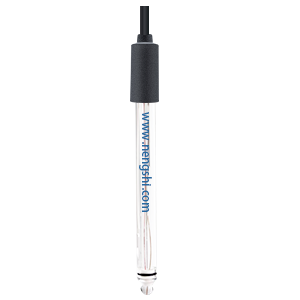

· pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-130℃.
· Pressure range：0.6MPa.
· The external dimension of the sensor isΦ12×120,225mmor other size.
· The wetted parts : glass.
· The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
· ASP3311 combination sensor with thermistor
(Please note the value of the thermistor when order)
· The sensor has the fixed cable and the length of the cable can be adjusted according
to the requirements of the users.
· pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-130℃.
· Pressure range：0.6MPa.
· The external dimension of the sensor is Φ12×120,225mm or other size.
· The outer tube material : glass.
· The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
· ASP3301 combination sensor with thermistor
(Please note the value of the thermistor when order)
· The sensor has the fixed cable and the length of the cable can be adjusted according to
the requirements of the users.
· The sensor can not be interferenced by silver ions.

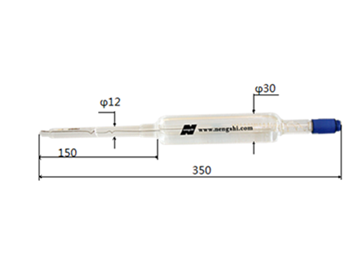

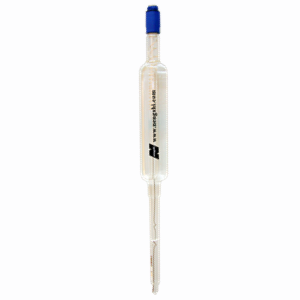

· pH range:0-14; zero point: E0=7pH; Temperature range: 0-130℃.
· Pressure range：0.6MPa.
· The external dimension of the sensor isΦ12×120,150mm or other size.
· The outer tube material : glass.
· The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
· ASP3385C combination sensor with thermistor
(Please note the value of the thermistor when order)

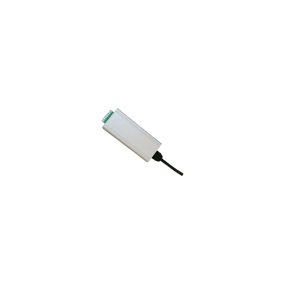

· It can directly connect with analog pH
sensor .
· It can convert analog signals to
digital signals.
Selcction of model:
· PT3000 pH digital module with RS485 output
