| pH sensor for pure water | pH sensor for waste water | pH sensor for common process | pharmacy and fermentation industry | Digital pH sensor |
|
Technical feature: |
|
|
· |
The measurement range：0～14 pH , zero point E0=7pH and the pressure resistance：0.6MPa. |
|
· |
The temperature range：0~130℃,suitable for steam sterilizable. |
|
· |
Good stability and small drift of sensor. |
|
· |
Quick response of sensor. |
|
· |
The sensor is in accordance with the requirements on sanitation of foods. |
|
· |

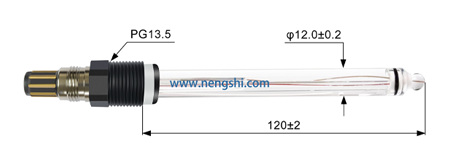

The dimension of the sensor is φ 12x120, 150 and 225mm or other dimensions. |
· It can convert
analog signals to digital signals ,and it is a predictive
digital pH sensor.
· Data stored in the sensor
interface,such as zero point,slope etc.
· The date
can close transmission but also long distance transmission .
· The
measured value is stable and reliable.
· Don't accept the influence of the surrounding environment ,such as temperature,
electromagnetic field etc.
· pH
range:0-14; zero point: E0=7pH; Temperature rang:
0-110℃.
· Pressure
range：0.6MPa.
· The
external dimension of the sensor is Φ12×120,225mm or other size.
Selection of model:
· ASP3151D digital pH sensor
with thermistor and plug-in connection, glass body
· ASPS2151D digital pH
sensor with thermistor
and plug-in connection, plastic body
· ASPS2121D digital
pH sensor with thermistor and fixed
cable , plastic body
· ASPSRT2121D pH,ORP, temperature 3
in 1 digital sensor with fixed cable ,plastic body
· ASPSRT2151D pH,ORP, temperature 3
in 1 digital sensor with plug-in connection,
plastic body

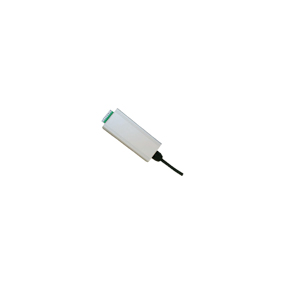

· It can directly connect with analog pH sensor .
· It can convert analog signals to digital signals.
· The module output digital signal, which can be connected to the computer directly,and
display PH value and temperature value.
Selcction of model:
· PT3000 pH digital module with RS485 output
